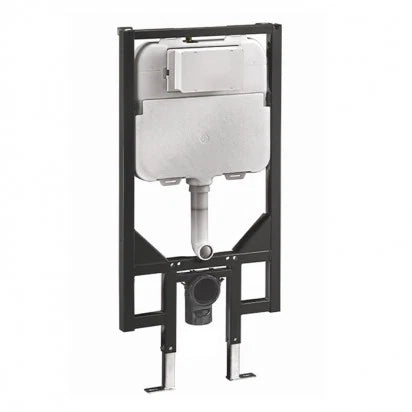

Parisi FRONT FLUSH PNEUMATIC 90MM INWALL CISTERN WITH METAL FRAME

The Inwall Concealed Cistern with Metal Frame (Pneumatic) PA121 is suitable for use with any PARISI wall hung pan.

For More Information, Please Find PARISI INWALL CONCEALED CISTERN WITH METAL FRAME

Residential/Light Commercial UseSuitable for Residential/Light Commercial Use (Kitchens, Bathrooms and Laundries in Hotels, Motels and Retirement Villages).

Guarantee15 Year Guarantee

4 Star WELS ratingWELS 4 STAR - 4.5L/min per full flush, 3L/per half flush

Weight TestedWeight Tested to 400kg

Additional InformationThe bracket should be mounted flush with the timber framing so the Villa board will be hard against the bracket. NB failure to do this may cause the wall to move and tiles to crack.

Additional InformationIf necessary strengthen the wall using additional horizontal or vertical nogs and also additional fixings at floor and ceiling.

Additional InformationOnce the Bracket has been installed, the wall framing should be tested for any deflection. There should not be any deflection.

Additional InformationThe Wall Studs should be nogged in a minimum of three places spaced equally between floor and ceiling.

Additional InformationThe minimum size of Timber framing and Grade is 100mm x 50mm Radiata MSG8, K/D, H1.2, M/g

Additional InformationThe Top and Bottom Timber Framing Plates must be well secured with no movement.

Additional InformationIf using a wall hung pan the wall lining must be a material such as Villa board with a minimum thickness of 9mm.
