KOHLER GRANDE BACK TO WALL TOILET SUITE

Since hygiene and ease of cleaning are major toilet concerns, KOHLER introduces Grande with rim-free technology for guaranteed hygiene and easy, effortless day-to-day care.  The secret is an ultra efficient flush system, a special interior pan design that's very smooth and rim-free so that every nook and cranny is accessible.   Hygiene Max Rimless Technology.  Maximum hygiene, maximum all-out clean.   Now available in a wrap, slim or elite seat.  Note: The elite seat includes a built-in night light and a scent dispenser.

• Dual flush (4.5/3L)
• Available with standard, slim or elite seat (see RRP's above).
• Elite seat features a built-in night light and scent dispenser.
• Also with an option of having an Englefield bidet seat (see RRP's above)
• Top left rear entry or right/left pan side entry

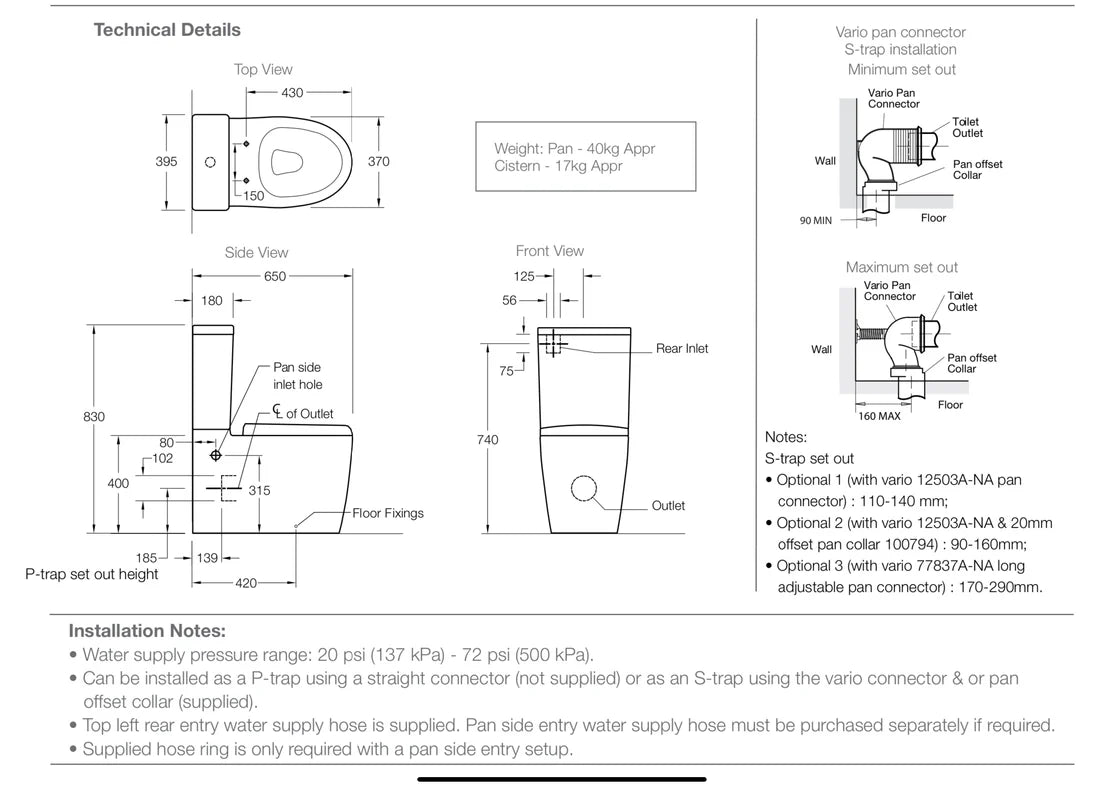

• P-trap set out height: 185mm
• S-trap set out:
  Optional 1 (with Vario 12503A-NA pan connector) : 110€šœ 140mm;
  Optional 2 (with Vario 12503A-NA + 20mm offset pan collar 100794) : 90-160mm;
  Optional 3 (with Vario 77837A-NA long adjustable pan connector) : 170-290mm.
• Hygiene Max Rimless pan design
• Vitreous china

Included Components

• Grande toilet pan
• Grande toilet cistern 4.5/3L
• Grande Quick Close, VQR (vertical quick release toilet seat)
• Vario pan connector
• Offset pan collar (20mm)
• Fill valve for top left rear entry
• Fill valve for pan side entry (supplied with pan)
• Top left rear entry water supply hose
• 2 x caps for pan side entry holes
• 1 x hose ring for pan side entry hole
• Floor fixing kit

Installation Instructions

• Water supply pressure range: 20 psi (137 kPa) - 72 psi (500 kPa).
• Can be installed as a P-trap using a straight connector (not supplied) or as an S-trap using the vario connector & or pan offset collar (supplied).
• Top left rear entry water supply hose is supplied. Pan side entry water supply hose must be purchased separately if required.
• Supplied hose ring is only required with a pan side entry setup.
